Large-area handpiece
Image du produit à venir
3.0cm² spot
High-speed / large spot
GLIDE
- Best suited for
- Back · Legs · Chest · Arms
- Diffusion d’énergie
- 1200 W · Dynamic 5–40 J/cm² · Flow 2–10 J/cm²
- Operating speed
- Dynamic 1 Hz · Flow 5–10 Hz
Rapid Series03

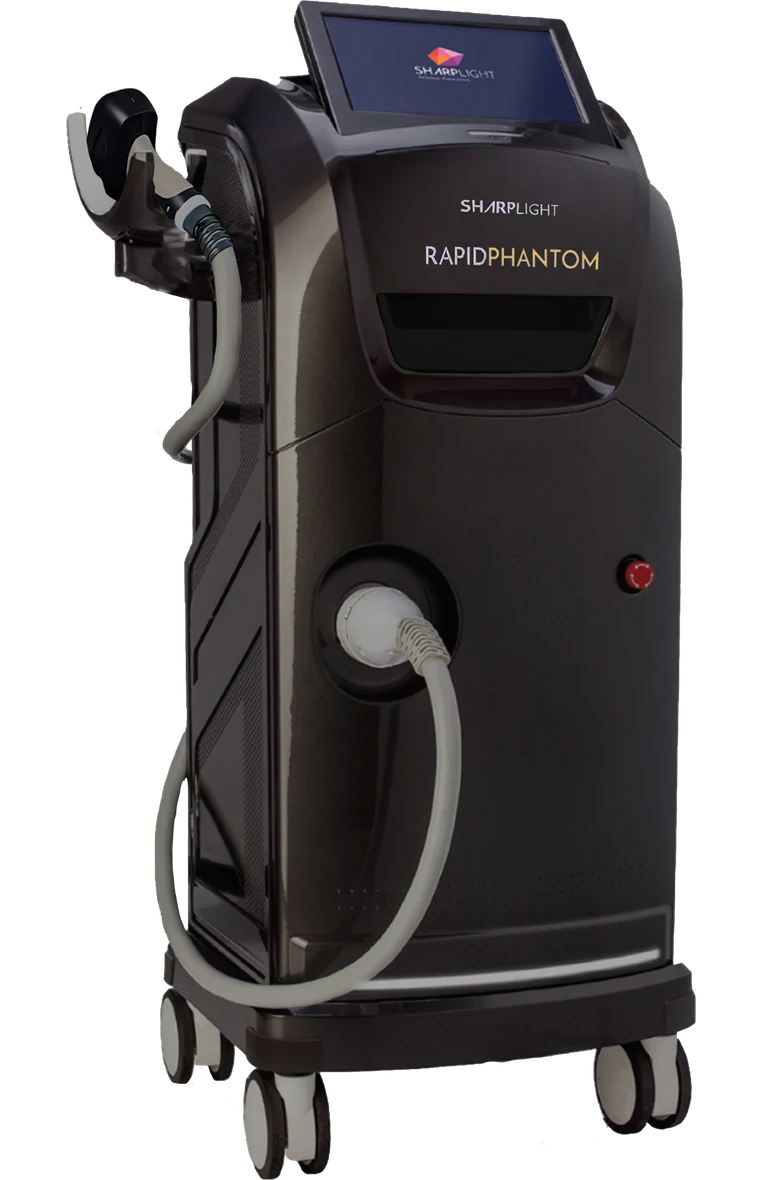

Rapid Series / 810 diode laser
Rapid Phantom
High-speed coverage.Precision on demand.
A diode-laser hair-removal workstation with GLIDE and EDGE handpieces, Dynamic and Flow modes, and continuous CoolTip™ sapphire contact cooling.
Designed aroundHair Reduction for All
- Wavelength
- 810 nm diode
- Handpieces
- GLIDE + EDGE
- Delivery
- Dynamic + Flow

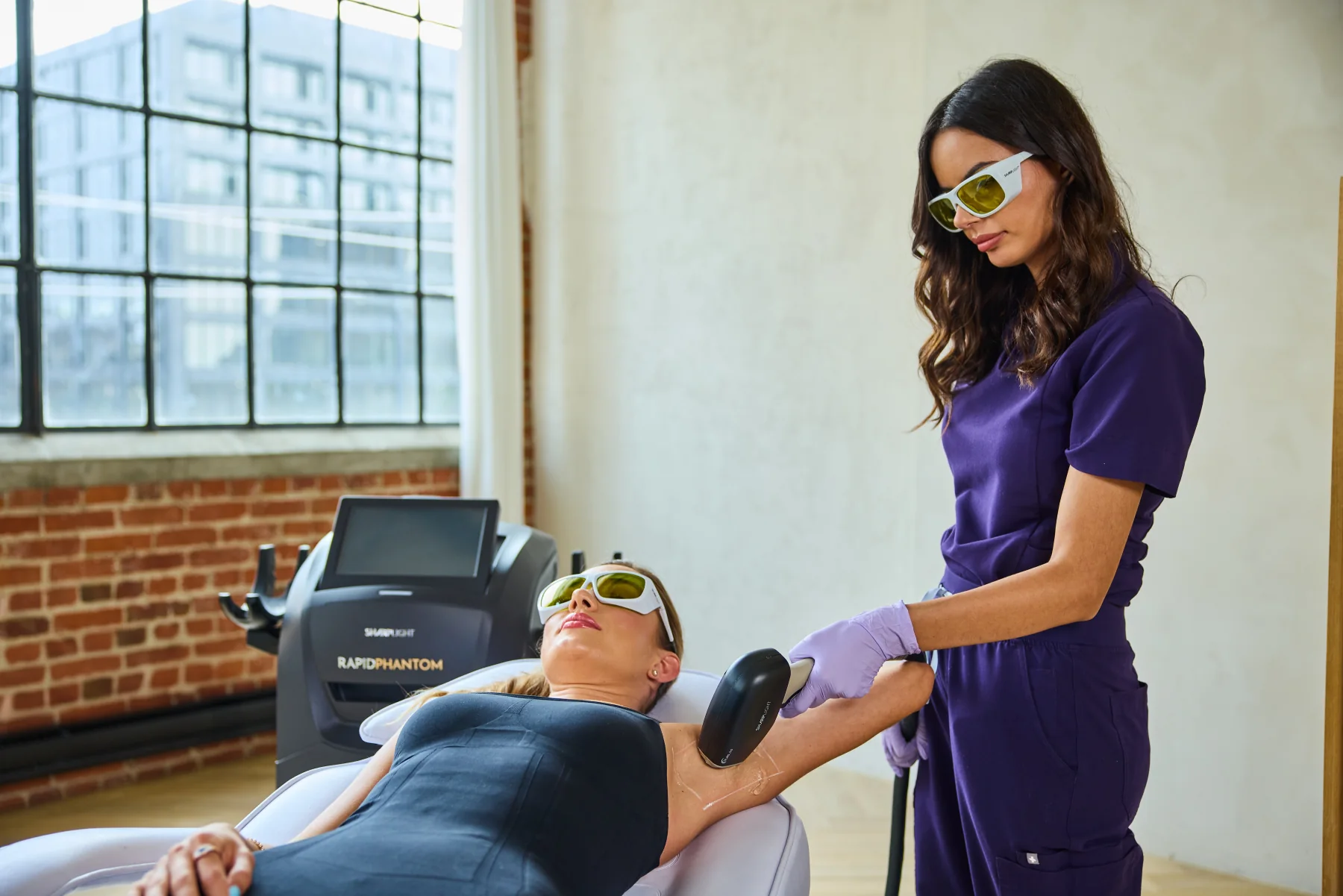

On the treatment floor
Watch theRapidPHANTOM
See Rapid Phantom combine pulse-by-pulse precision, in-motion treatment speed, and continuously cooled diode delivery in a clinical protocol.
- 810 nm diode
- GLIDE + EDGE
- Dynamic + Flow modes
Product videoVoir la vidéoAperçu de la plateforme
Two handpieces, two delivery modes, one diode protocol
Rapid Phantom is a professional diode-laser platform designed for hair removal and hair reduction. Its 810 nm wavelength supports selective energy delivery to the hair follicle across protocol-appropriate skin types and treatment areas.
Dynamic Hair Removal (DHR) delivers controlled pulses at 1 Hz with 5–40 J/cm² fluence and 30–100 ms pulse widths. Flow Hair Removal (FHR) uses 2–10 J/cm² at 5–10 Hz for continuous in-motion coverage with pulse widths up to 27 ms.
GLIDE combines a 3.0 cm² spot and 1200 W output for larger zones. EDGE uses a 1.6 cm² spot and 600 W output for detailed or contoured areas. Both support Dynamic and Flow modes without changing the treatment platform.
CoolTip™ sapphire contact cooling operates at the skin surface, while a closed-loop liquid-cooling system regulates the workstation internally. A 10.2-inch colour touchscreen brings mode and treatment settings into one interface.
810 nm
Diode wavelength
2
Dedicated handpieces
5–10 Hz
Flow repetition rate
Conception de la plateforme
Designed around a dual-mode diode protocol
Six protocol details connect cooling, control, mobility, handpiece selection, and dual-mode diode delivery in one self-contained platform.
CoolTip™ sapphire cooling
Continuous CoolTip™ sapphire contact cooling supports epidermal protection and patient comfort throughout energy delivery.
10.2-inch colour touchscreen
A clear interface brings treatment mode, parameters, and system status into one practitioner-led protocol.
Compact mobile footprint
A 103 × 44 × 46 cm workstation and 43 kg system weight support movement between treatment spaces.
GLIDE and EDGE compatibility
Two dedicated handpieces cover broad body zones and detailed contours with 3.0 cm² and 1.6 cm² spots.
Dynamic and Flow delivery
Dynamic stamping pulse-by-pulse treatment and in-motion Flow treatment options provide the flexibility to tailor every treatment for optimal speed, precision, and patient comfort.
Built for High-Performing Clinics
A dedicated diode laser platform engineered to deliver consistent, efficient hair removal treatments day after day.
Meet the handpieces
Coverage when it counts.
Precision where it matters.
GLIDE and EDGE share the same diode wavelength, CoolTip™ cooling, and dual-mode delivery while matching spot size and power to the treatment area.

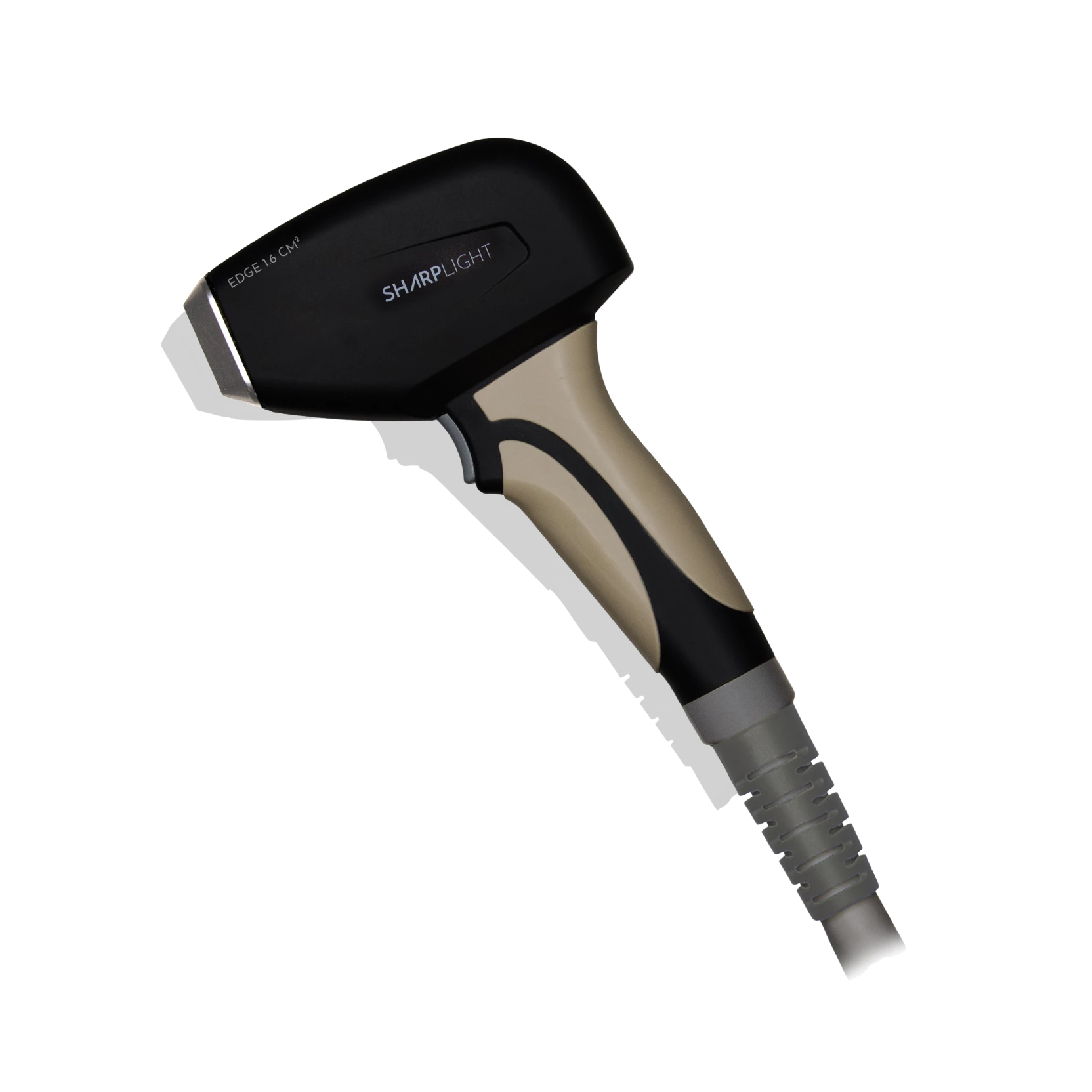

Precision handpiece
Image du produit à venir
1.6cm² spot
Precision / compact spot
EDGE
- Best suited for
- Beard line · Upper lip · Underarms · Bikini
- Diffusion d’énergie
- 600 W · Dynamic 5–40 J/cm² · Flow 2–10 J/cm²
- Operating speed
- Dynamic 1 Hz · Flow 5–10 Hz
810 nmDiode Laser
1.6 + 3.0 cm²Precision and coverage spots
1–10 HzDynamic and Flow speeds
CoolTip™Sapphire contact cooling technology
Why choose Rapid Phantom
Precision meets speed
One diode platform. Four practical advantages across precision and large-area hair-removal protocols.
Large-area efficiency
Pair GLIDE’s 3.0 cm² spot and 1200 W output with Flow mode for efficient in-motion coverage across larger treatment zones.
Contour-ready precision
Use EDGE’s 1.6 cm² spot and 600 W output for controlled treatment around detailed, smaller, or contoured areas.
Protocol flexibility
Move between higher-fluence Dynamic pulses and lower-fluence Flow delivery without changing workstations or core technology.
Continuous contact cooling
CoolTip™ sapphire windows provide active surface cooling throughout treatment to support comfort and epidermal protection.

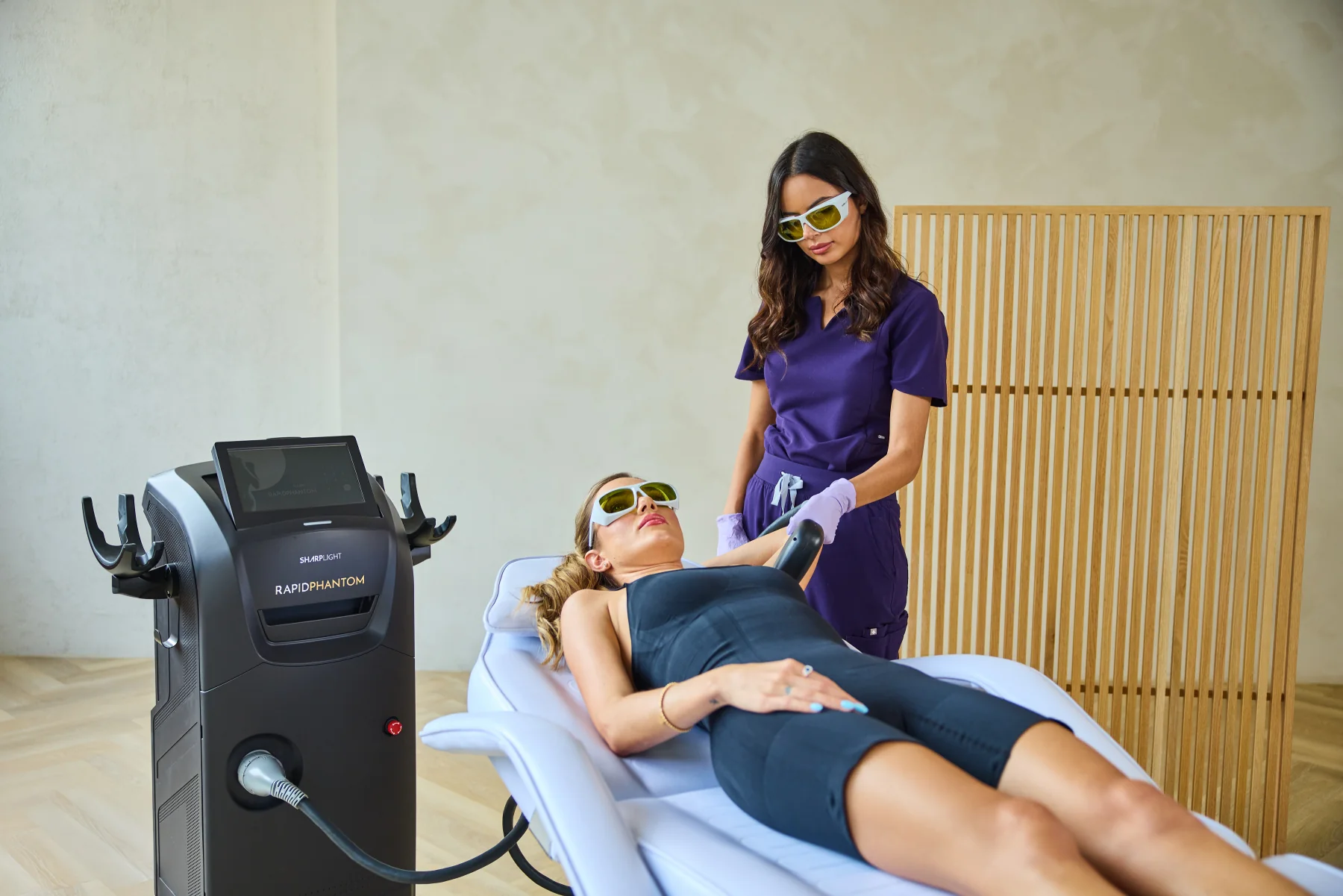

On the treatment floor
Built for diode hair removal
Rapid Phantom in a professional treatment setting, combining a mobile diode workstation with practitioner-led precision and in-motion delivery.

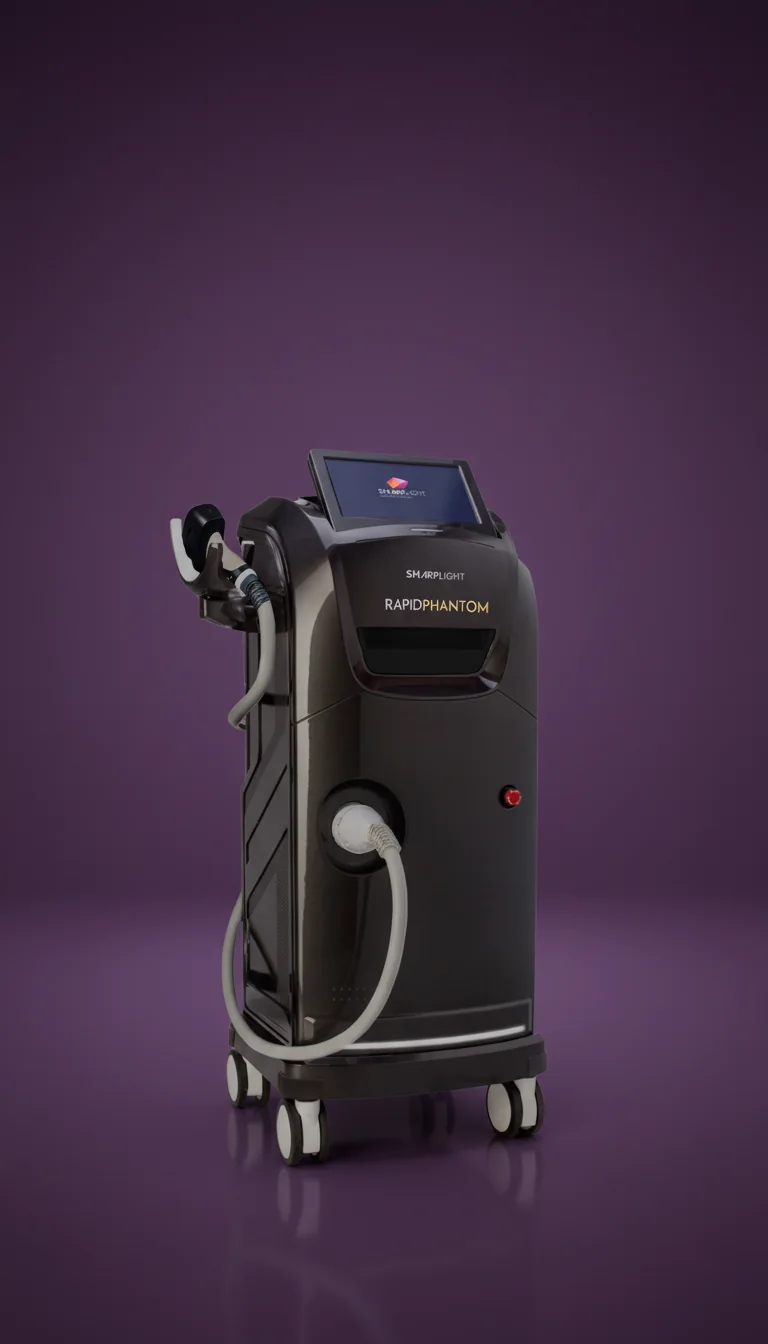

Référence technique
Rapid Phantom technical specifications
Core performance
- Technology
- Diode laser
- Wavelength
- 810 nm
- Primary indication
- Hair removal and hair reduction
- Dynamic fluence
- 5–40 J/cm²
- Flow fluence
- 2–10 J/cm²
- Dynamic pulse width
- 30–100 ms
- Flow pulse width
- Up to 27 ms
- Repetition rate
- Dynamic: 1 Hz · Flow: 5–10 Hz
Handpiece family
- GLIDE
- 3.0 cm² · 1200 W
- EDGE
- 1.6 cm² · 600 W
- Shared modes
- Dynamic Hair Removal (DHR) and Flow Hair Removal (FHR)
- Shared cooling
- CoolTip™ sapphire contact cooling
Cooling & safety
- Contact cooling
- CoolTip™ sapphire window with continuous active cooling
- Internal cooling
- Closed-loop liquid cooling with active temperature regulation
System & hardware
- Display
- 10.2-inch high-definition colour touchscreen
- Electrical
- 120–240 V AC, 50–60 Hz, 9–5 A
- Dimensions
- 103 cm H × 44 cm W × 46 cm D
- Total weight
- 43 kg / 94.8 lb
Documented outcomes
See the difference.
Control the view.
Explore documented before-and-after imagery relevant to Rapid Phantom. Drag the divider across each image to inspect the result from either side.
Individual results vary by patient, protocol, practitioner, and treatment plan.
Réponses aux questions cliniques
Rapid Phantom
questions fréquentes
Des renseignements pratiques pour les cliniques qui évaluent la plateforme.
L’admissibilité au traitement, les paramètres et les soins après traitement doivent être déterminés par un praticien SharpLight formé, à la suite d’une consultation et d’un test cutané.
What is the SharpLight Rapid Phantom?
Rapid Phantom is an 810 nm diode-laser platform designed for professional hair removal and hair reduction. It combines Dynamic Hair Removal (DHR) and Flow Hair Removal (FHR) modes with GLIDE and EDGE handpieces for broad and precision treatment areas.
Why is the 810 nm diode wavelength widely used for hair removal?
The 810 nm wavelength balances melanin absorption with penetration depth, helping trained practitioners direct laser energy toward the hair follicle while following protocol-specific measures intended to protect surrounding skin.
What is the difference between GLIDE and EDGE?
- GLIDE: a 3.0 cm², 1200 W handpiece for efficient coverage of larger body areas such as the back, legs, chest, and arms.
- EDGE: a 1.6 cm², 600 W handpiece for detailed or contoured areas such as the beard line, upper lip, underarms, and bikini area.
Both handpieces support Dynamic and Flow modes and include CoolTip™ sapphire contact cooling.
How are Dynamic and Flow modes different?
- Dynamic Hair Removal (DHR) delivers individual higher-fluence pulses at 1 Hz for controlled, pulse-by-pulse treatment.
- Flow Hair Removal (FHR) uses lower fluence at 5–10 Hz while the handpiece moves continuously across the treatment area.
Which Fitzpatrick skin types can Rapid Phantom treat?
Rapid Phantom is designed to support hair-removal protocols across Fitzpatrick Skin Types I–VI. Treatment suitability, mode, fluence, and cooling settings must be selected by a trained practitioner after consultation and skin assessment; recent tanning can affect treatment timing and parameters.
How does CoolTip™ support treatment comfort?
Each handpiece includes a continuously cooled CoolTip™ sapphire contact window. It cools the skin surface before and during energy delivery to support epidermal protection and patient comfort throughout the selected protocol.
How many sessions are usually included in a treatment plan?
Most patients require 6–8 treatments, spaced according to the hair growth cycle, to achieve optimal long-term hair reduction. The exact number of sessions depends on factors such as the treatment area, hair colour and thickness, skin type, and individual response to treatment. Periodic maintenance sessions may be recommended to help maintain results.
What does a Rapid Phantom treatment feel like?
Flow mode is designed to feel like a gradually warming, gliding treatment, while Dynamic mode can feel like a brief light snap with each pulse. Sensation varies by area, settings, and individual sensitivity; CoolTip™ cooling operates throughout treatment.
Is downtime expected after treatment?
Rapid Phantom hair-removal protocols are generally intended without planned downtime. Temporary redness or perifollicular erythema can occur and commonly settles within several hours. Patients should follow their practitioner’s instructions and report unexpected or persistent effects.
What post-treatment care is recommended?
- Use broad-spectrum SPF 50+ on exposed treatment areas.
- Avoid direct sun exposure for four weeks after treatment or as directed by the treating professional.
- Avoid hot tubs, saunas, and intense exercise for 24–48 hours when advised.
- Follow all area-specific instructions provided by the treating professional.
