Rapid Series05

Rapid Series / Er:YAG 2940 + DPC™

Rapid Peel

Treat texture, tone,and more.

A configurable two-technology platform combining fractional Er:YAG 2940 resurfacing with DPC™ handpieces for skin rejuvenation and selected vascular and pigmented-lesion protocols.

Designed aroundSkin Quality
Technologies
Er:YAG + DPC™
Handpieces
3 application-specific options
Fractional Tip Options
7×7 · 9×9 · 4 mm

On the treatment floor

Watch theRapid Peel

See the Rapid Peel workstation combine fractional Er:YAG resurfacing and DPC™ delivery in a practitioner-led skin-treatment protocol.

  • Er:YAG + DPC™
  • 3 handpiece options
  • 3 Fractional Tip Options
Product videoVoir la vidéo

Aperçu de la plateforme

Two technologies, three handpiece options

Rapid Peel is a configurable multi-technology platform. Fractional Er:YAG 2940 nm supports complete ablation and controlled skin resurfacing. DPC SR580 addresses overall skin tone and rejuvenation, while Dual VP² provides spot treatment for unwanted pigment or vascular lesions such as age spots and broken capillaries.

The Fractional LASER 2940 handpiece delivers selectable pulse energy up to 1.4 J, pulse widths from 1–2 ms, and repetition rates from 1–3 Hz. Choose from 7×7, 9×9, and 4 mm Fractional Tip Options to match the treatment plan.

DPC SR580 emits a 580–950 nm band for overall skin tone and rejuvenation. Dual VP² emits 535–680 nm and 860–1200 nm for spot treatment of unwanted pigment and vascular lesions.

A 10.2-inch colour touchscreen, internal water-cooling system, external cooling protocol, integrated handpiece storage, and mobile 53 kg workstation support a structured multi-technology procedure.

  • 2

    Core technologies

  • 3

    Handpiece options

  • 3

    Fractional tip options

Conception de la plateforme

Designed around a multi-technology skin protocol

Six protocol details connect cooling, control, mobility, handpiece selection, two treatment technologies, and room safeguards in one self-contained platform.

  • CoolTip™ sapphire contact cooling

    CoolTip™ contact cooling supports epidermal protection before and throughout DPC™ treatments.

  • 10.2-inch colour touchscreen

    A clear interface brings matrix selection, pulse energy, pulse width, repetition rate, and session count into one protocol.

  • Compact mobile footprint

    A 102.7 × 44 × 46 cm workstation is designed to move between treatment spaces while remaining self-contained.

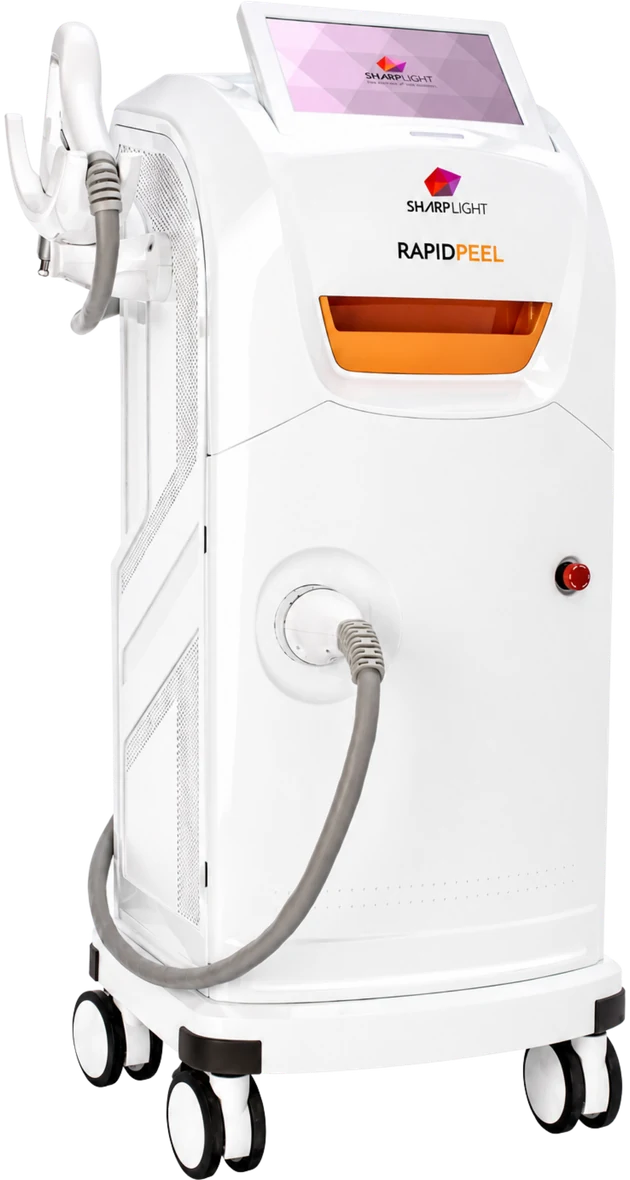

Rapid Peel fractional Er:YAG workstation with mounted LASER 2940 handpiece
Multi-technology skin platform
  • Three handpiece options

    Fractional LASER 2940, DPC SR580, and Dual VP configure the platform for resurfacing, rejuvenation, vascular, and pigment work.

  • Fractional and DPC™ delivery

    Controlled Er:YAG ablation and DPC™ pulse modes bring two complementary technologies into one platform.

  • Integrated laser safeguards

    Protective eyewear requirements, a treatment-room interlock connection, and system monitoring support controlled operation.

Meet the handpieces

Three handpiece options.
One skin-focused platform.

Fractional Er:YAG and DPC™ handpiece options move from complete ablation to overall skin tone, rejuvenation, and spot treatment without changing platforms.

Fractional Er:YAG handpiece
7×7 · 9×9 · 4tip options

Three included fractional tips

LASER 2940

Best suited for
Complete ablation · Focused fractional treatment
Diffusion d’énergie
Up to 1.4 J/pulse · 1–2 ms
Operating speed
1–3 Hz

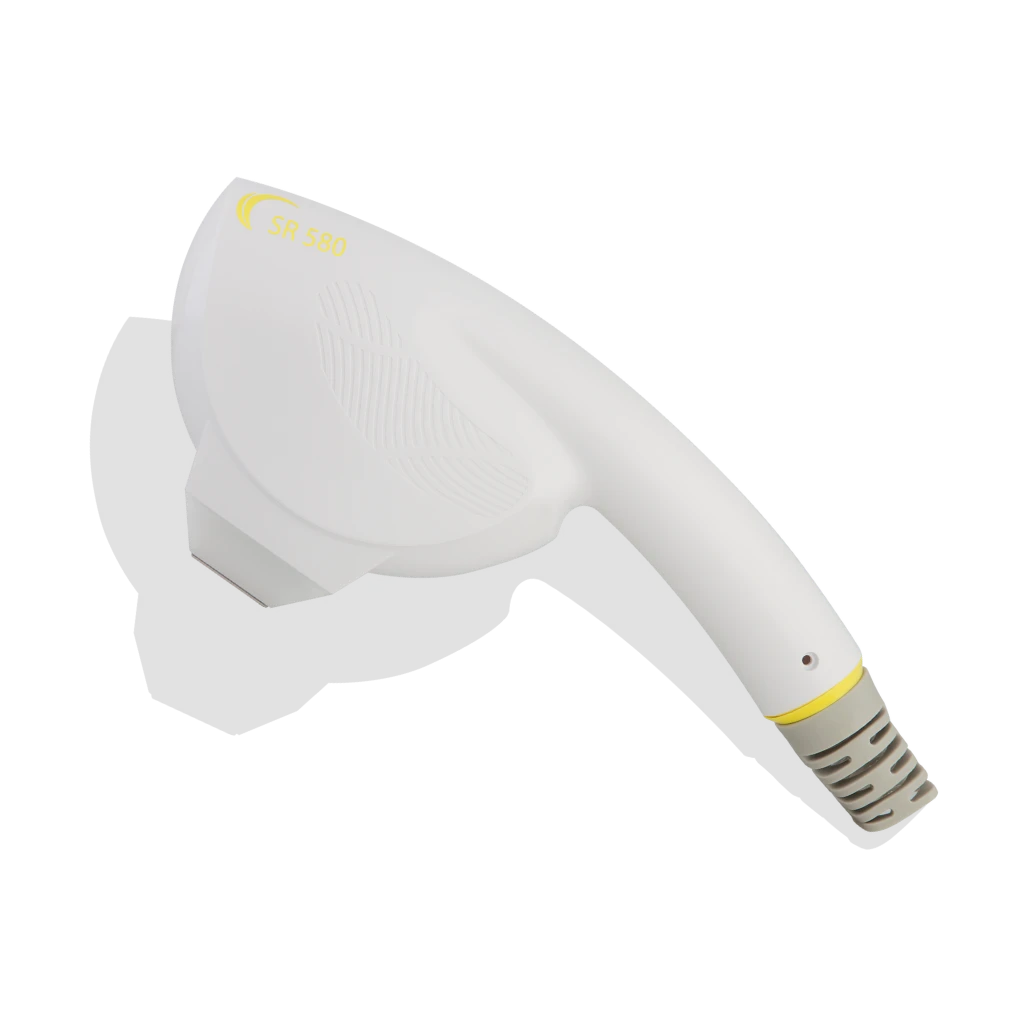

DPC™ SR580 handpiece
3.4cm² spot

Skin rejuvenation / pigment

DPC SR580

Best suited for
Face · Neck · Chest · Hands · Overall skin tone and rejuvenation
Diffusion d’énergie
580–950 nm · DPC up to 25 J/cm² · 10–25 ms
Operating speed
DPC up to 0.4 Hz

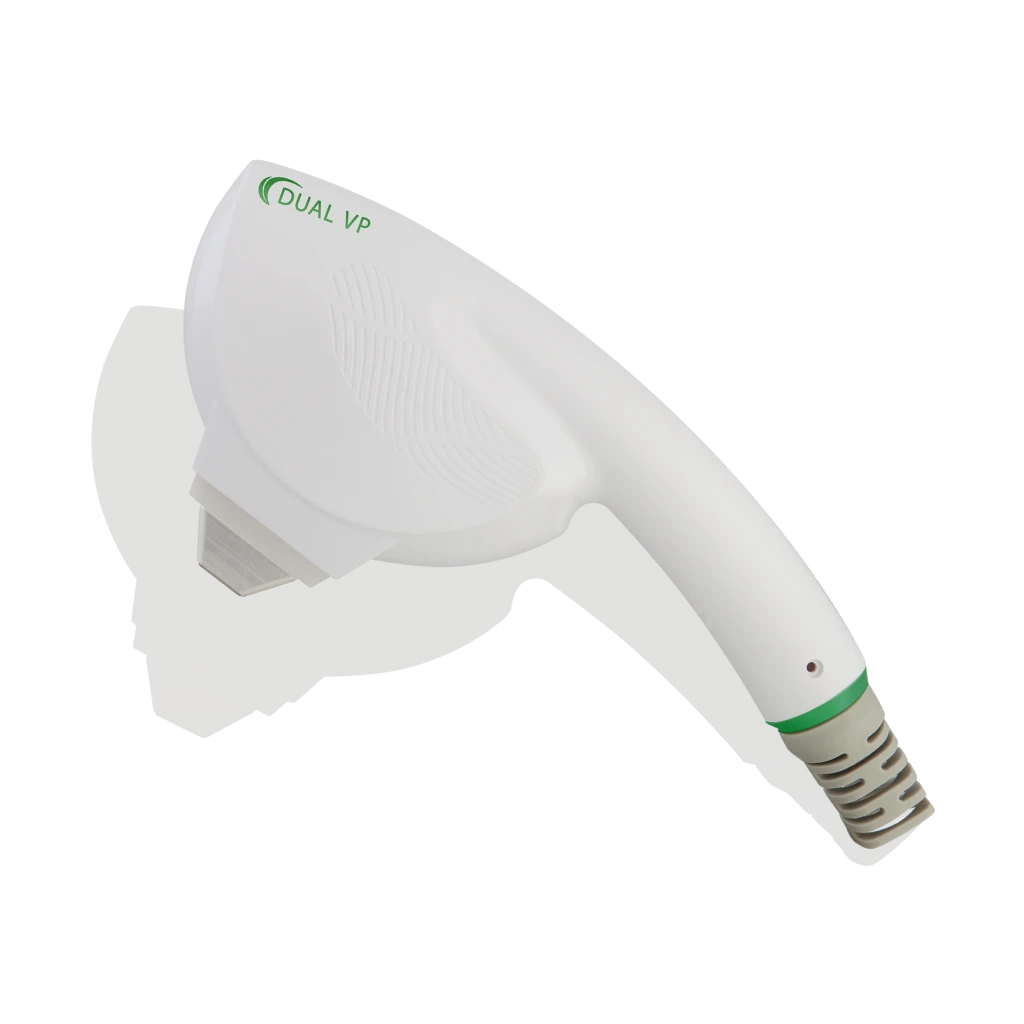

DPC™ VP² handpiece
1.5cm² spot

Vascular / pigmented lesions

Dual VP²

Best suited for
Selected vascular concerns · Localized pigmented lesions
Diffusion d’énergie
535–680 + 860–1200 nm · DPC up to 25 J/cm²
Operating speed
10–25 ms · DPC up to 0.4 Hz
2Complementary technologies
3Application-specific options
7×7 · 9×9 · 4 mmFractional tip options
DPC™Targeted skin protocols

Détail de la pièce à main

HR 635

01 / 02

Profil latéral

Why choose Rapid Peel

Two Techno- logies. Focused Control.

One multi-technology platform. Four practical advantages across resurfacing, rejuvenation, vascular, and pigment protocols.

Er:YAG ablation

Water-selective 2940 nm delivery

Er:YAG energy targets water-rich superficial tissue, supporting precise layer-by-layer ablation with limited collateral thermal effect.

Fractional tip options

Customizable Treatment Intensity

Customize your treatment protocols from a protective 9×9 matrix, to a corrective 7×7 matrix, or a full ablation 4 mm tip.

DPC™ coverage

Total Skin Health in One Platform

Combine resurfacing, rejuvenation, pigment, and vascular protocols in one platform to support complete skin health plans.

Clinical protocol

Stack Treatments with Precision

Stack technologies to create customized treatment plans—an increasingly popular approach for addressing multiple skin concerns in one coordinated protocol.

En salle de traitement

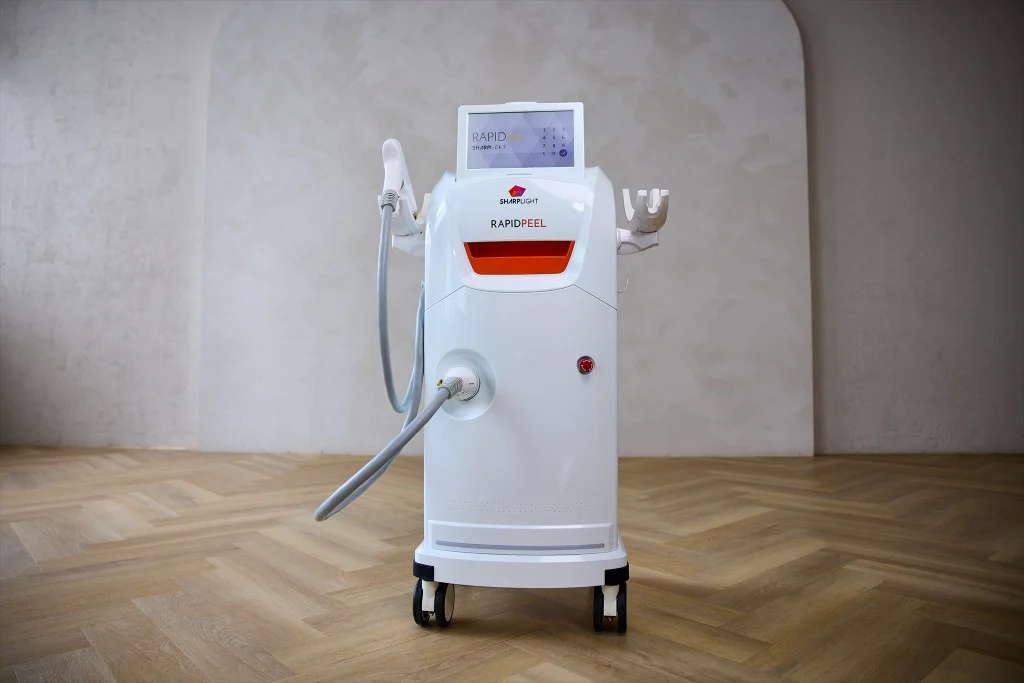

Rapid Peel workstation in a treatment room
01 / 02

Full workstation — mobile base with dual handpiece cradles

Référence technique

Rapid Peel technical specifications

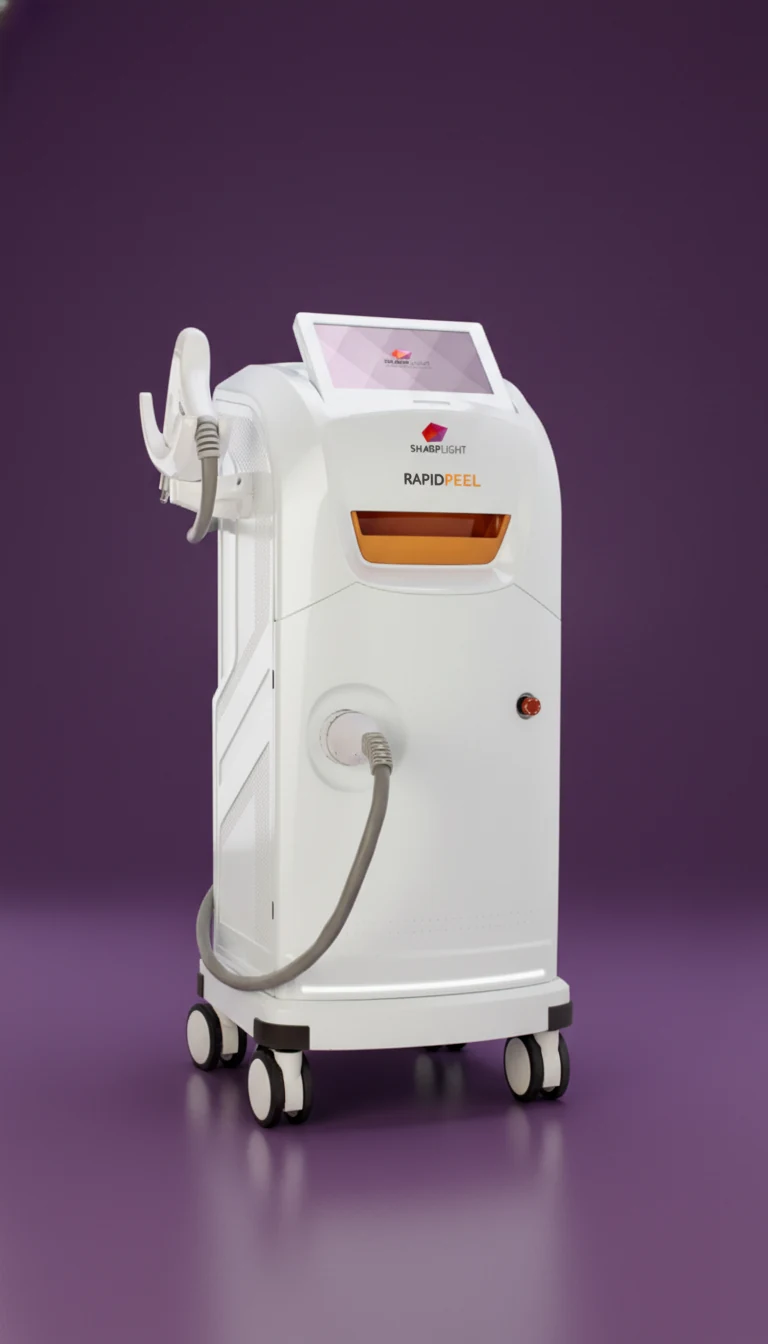

Rapid Peel fractional Er:YAG workstation in a purple studio setting
Rapid SeriesRapid Peel

Core technology & delivery

Platform technologies
Fractional Er:YAG laser + Dynamic Pulse Control™ IPL
Laser wavelength
2940 nm
Pulse energy
0.8 · 1.0 · 1.2 · 1.4 J
Pulse width
1.0 · 1.2 · 1.5 · 2.0 ms
Repetition rate
1 · 2 · 3 Hz

DPC™ handpiece family

DPC SR580
580–950 nm · 3.4 cm² spot
SR580 delivery
Up to 25 J/cm² · 10–25 ms · up to 0.4 Hz
Dual VP
535–680 nm + 860–1200 nm · 1.5 cm² spot
Dual VP delivery
Up to 25 J/cm² · 10–25 ms · up to 0.4 Hz

Fractional treatment interface

Handpiece
Fractional LASER 2940
Treatment field
11 × 11 mm
7×7 matrix
49 dots · up to 28 mJ per dot
9×9 matrix
81 dots · up to 17 mJ per dot
Fractional tip
4 mm focused tip

System, cooling & safeguards

Display
10.2-inch colour touchscreen
Electrical
120–240 V~, 50–60 Hz, 12 A max
Dimensions
102.7 cm H × 44 cm W × 46 cm D
Total weight
53 kg

Documented outcomes

See the difference.
Control the view.

Explore documented before-and-after imagery relevant to Rapid Peel. Drag the divider across each image to inspect the result from either side.

Individual results vary by patient, protocol, practitioner, and treatment plan.

Après — Skin Resurfacing
Avant — Skin Resurfacing
AvantAprès

Réponses aux questions cliniques

Rapid Peel
questions fréquentes

Des renseignements pratiques pour les cliniques qui évaluent la plateforme.

L’admissibilité au traitement, les paramètres et les soins après traitement doivent être déterminés par un praticien SharpLight formé, à la suite d’une consultation et d’un test cutané.

What is the SharpLight Rapid Peel?

Rapid Peel is a configurable professional platform combining fractional Er:YAG 2940 nm laser resurfacing with two DPC™ handpieces: SR580 for overall skin tone and rejuvenation, and VP² for targeted pigment and vascular concerns.

How does fractional Er:YAG 2940 nm treatment work?

Water absorption peaks near 2940 nm, so the laser can ablate superficial skin layers with limited collateral thermal effect. Fractional delivery divides the beam into an array of microbeams, leaving untreated tissue between the ablated areas to support re-epithelialization.

What is the difference between the Fractional 2940 tip options?
  • The 7×7 matrix is used for maintenance treatments.
  • The 9×9 matrix is used for corrective treatments.
  • The 4 mm tip is used for full ablation.

Practitioners can customize treatment intensity and use multiple passes based on the treatment goals, patient response, and clinical assessment.

Which handpiece options are available for Rapid Peel?
  • Fractional LASER 2940: Er:YAG resurfacing with 7×7, 9×9, and 4 mm tip configurations.
  • DPC SR580: a 580–950 nm DPC™ handpiece for overall skin tone and rejuvenation.
  • Dual VP²: a dual-band 535–680 nm and 860–1200 nm DPC™ handpiece for selected vascular and pigment spot treatments.
Which skin concerns are described for Rapid Peel?
  • Fractional Er:YAG: textural damage, lines and wrinkles, dullness, open pores, dyschromias, keratoses, and superficial scars.
  • DPC SR580: skin rejuvenation of the face, neck, chest, and hands, plus documented benign pigmented lesions.
  • Dual VP: selected vascular and pigmented concerns using its simultaneous dual-band spectrum.

Suitability and configuration must be determined after consultation, medical-history review, and practitioner assessment.

What does a Rapid Peel treatment feel like?

Most patients describe fractional resurfacing as a warm, prickling sensation during treatment and have downtime while the skin heals. DPC™ treatments are generally well tolerated and are often described as a gentle warming sensation with a light snapping feeling. Integrated CoolTip™ contact cooling keeps treatments comfortable, and DPC™ treatments require little to no downtime.

What is the downtime?

Most clients experience 2–4 days where the fractional treatment grid remains visible, followed by continued healing and skin renewal for up to two weeks. As the skin regenerates, texture and tone continue to improve, with full results typically visible after approximately 28 days. DPC™ treatments have little to no downtime. Mild redness may occur immediately after treatment but typically resolves within a few hours, allowing most clients to return to their normal activities right away.

How many sessions may be included in a treatment plan?

Every patient’s skin is unique, which is why Rapid Peel treatments can be fully customized based on individual concerns, downtime preferences, and desired outcomes. For concerns such as acne scarring, pigmentation, fine lines, wrinkles, and uneven skin texture, a series of 3–6 fractional resurfacing treatments is typically recommended, scheduled every 4–6 weeks. DPC™ Skin Rejuvenation and VP² Pigment & Vascular treatments can be incorporated throughout the series to target redness, pigmentation, and overall skin quality. For clients looking to refresh their skin each year, a customized fractional resurfacing treatment combined with DPC™ skin rejuvenation provides a comprehensive approach to improving texture, tone, pigmentation, and overall skin health.

What post-treatment care is recommended?
  • Use cold-water compresses and practitioner-recommended soothing or moisturizing creams; do not rub the skin.
  • Cleanse as directed with a soap-free cleanser and apply ointment until scabbing has resolved.
  • Stay indoors while redness, swelling, and tenderness subside when possible.
  • Use protective headwear and at least SPF 30 when going outside, then maintain daily sun protection after re-epithelialization.
